Electro-Chemical Devices
Transmitters

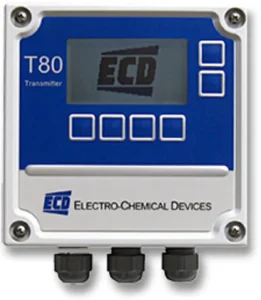

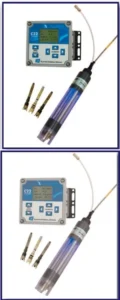

Model T80 Universal Transmitter
The ECD Model T80 Universal Transmitter is a single or dual channel transmitter designed for the continuous measurement of pH, ORP, pION, Dissolved Oxygen, Turbidity, Conductivity or Resistivity in a general purpose industrial environment. The Model T80 transmitter digitally communicates with any ECD Model S80 Intelligent Sensor, automatically configuring the transmitter’s menus and display screens to the measured parameter. The same transmitter can be used for any of the measurements.
DatasheetS80 Intelligent Sensors

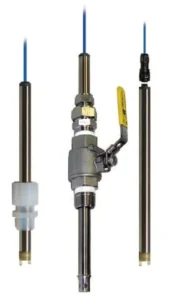

Model S80 Intelligent Sensors
Electro-Chemical Devices offers a complete line of liquid analytical sensors: pH, ORP, Specific Ion, Dissolved Oxygen, Conductivity & Resistivity. The technical advantage of the Model S80 Intelligent Sensors are the 6 points of design flexibility to configure a sensor that best fits your application.
The S80 sensors have two Universal Sensor Designs; Insertion/Submersion or Valve Retractable with flaired end to prevent blow out. The standard Model S80 sensors have a rugged .5” O.D. 316 stainless steel body with a 10 ‘. cable or an optional waterproof detachable cable assembly.
VIEW SENSOR ELECTRODE REPLACEMENT VIDEO
DatasheetOnline Analyzers
Chlorine Analyzers
Free Chlorine FC80

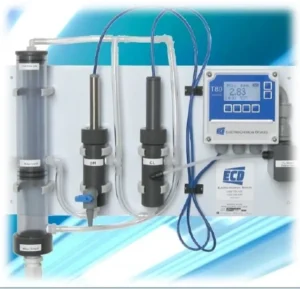

The FC80 Intelligent Free Chlorine Sensor stores calibration and has digital communication. It is used in the chlorination of municipal drinking water, cooling towers, industrial disinfection of rinse waters, food processing, pasteurization lines, bleaching processes, and oxidation in chemical processing.
View PDFFree Chlorine FC80 High Range
The FC80 High Range (HR) is a panel mounted, ready to use Free Chlorine Analyzer. It is designed to monitor high range free chlorine for produce washwater and other high dose free chlorine applications. The analyzer’s measurement range is 0.05 – 200 ppm Cl2 where most applications commonly used concentrations of between 50 to 200 ppm Cl2.
View PDFTC80 Total Chlorine Analyzer

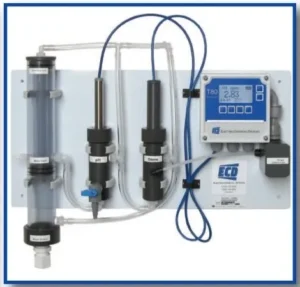

The Model TC80 is a panel mounted, ready to use Total Chlorine Analyzer. It is designed to monitor total chlorine in drinking water, rinse water, cooling water or other fresh water samples from 0.05 – 20 ppm Cl2 with the High Range sensor and 0.005 to 2.000 ppm with the Low Range sensor. The TC80 features a plug and play design that incorporates a flow control device, a pH sensor, a chlorine sensor and the T80 transmitter are conveniently mounted on a PVC panel.
View PDFChlorine Dioxide Analyzer
CD80 Chlorine Dioxide Analyzer
The CD80 is a panel mounted, ready to use Chlorine Dioxide Analyzer. It is designed to monitor free chlorine in drinking water, rinse water, cooling water or other fresh water samples from 0.05 – 20 ppm chlorine as the standard range or 0.01 – 5.00 ppm with the low range sensor. The CD80 is compliant with EPA method 334.0 for measuring drinking water.
View PDF
Disinfection Analyzers
Ozone Analyzer OZ80
The OZ80 is a panel mounted, ready to use Ozone (O3) analyzer. It is available in several ranges to suit its various applications, 0-2.00 ppm for disinfection processes and 0-20.00 ppm for oxidation and bleaching applications.
View PDFHydrogen Peroxide Analyzer HP80
The HP80 is a panel mounted, ready to use Hydrogen Peroxide (H2O2) analyzer. It is available in several ranges to suit its various applications, 0-200 ppm for oxidation and disinfection processes and 0-20% for bleaching applications.
View PDF

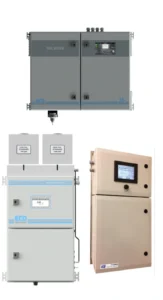

Colorimetric Analyzers

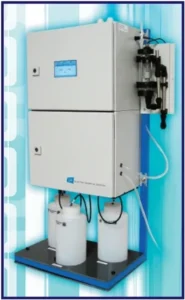

CA – 6
The CA-6 Series Analyzers are a family of on-line sequen3al sampling analyzersthat use Colorimetric technology to perform an analysis. The analyzers can be configured to perform most colorimetric analysis that use up to four reagents.
Available for the following parameters:
Aluminum
Ammonia
Chloride
Chlorine
Chromium VI
Copper
Cyanide
Hardness
Iron
Manganese
Nickel
Nitrite
Phosphate
Total Phosphorus
Silica
Sulfate
Sulfide
Zinc
View PDF
TOC Analyzer
TOC
Measuring TOC continuously online is the perfect solution for monitoring contamination and discharges. The TOC Analyzer measures total organic carbon in liquid samples using the method of UV persulfate oxidation with subsequent carbon dioxide detection by nondispersive infrared absorption (NDIR). The analyzer can measure TOC in liquid samples ranging from 0–5 mg/L to 20,000 mg/L. The method conforms to EPA, DIN, CE, ASTM, and NAMUR regulations as well as meeting the requirements of ISO and EN directives.
View PDFSodium Analyzer
NA6
The NA6 Analyzer is a compact online analyzer for the automatic measurement of Sodium. The sodium measurement is based on the proven accuracy of the glass sodium electrode for the online potentiometry detection of low ppb traces of sodium. The sodium sensor develops a potential proportional to the log of the sodium concentration, after the pH of the sample is raised to 11 to eliminate pH and ammonium interferences. This is obtained using reagent vapor addition.
View PDFAlkalinity Analyzers
CA900
The CA900 Series Analyzers are a family of on-line sequential sampling analyzers that use various automated analytical technologies to perform an analysis. When configured for alkalinity measurements, titration technology is used for the most cost effective, ease of use and low maintenance method.

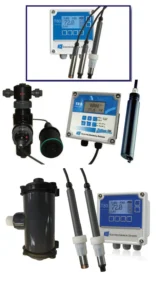

View PDFOptical Dissolved Oxygen Analyzers
Triton DO82 Sensor
DO82
The Triton® DO82 Optical Dissolved Oxygen sensor uses fluorescence quenching to determine the oxygen concentration in water. The use of this optical method by the Triton® DO82 minimizes maintenance, increases reliability and improves the long term accuracy of the measurement. Combine this improved measurement technology with the rugged, easy to install design and the Triton® DO82 provides the best solution for long term measurements in aeration basins, aquaculture and all types of environmental water.
Find Out MoreTriton pp DO90 Sensor
DO90
The Model DO90 Trace DO2 is designed for the continuous measurement of trace levels of dissolved oxygen in aqueous systems. The primary application of the Model DO90 trace dissolved oxygen sensor is in the monitoring of boiler feedwater. Oxygen should only be present in trace quantities, excessive concentrations of oxygen can result in corrosion damage to the components of the Steam Cycle.

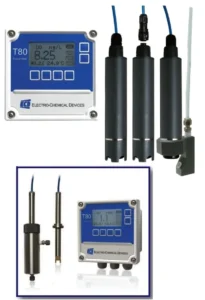

View PDFTurbidity Meters
Triton® TR6 Turbidity Sensor
The Triton® TR6 sensor is designed for the continuous measurement of turbidity or suspended solids in various ranges from 0 -250 NTU to 0 – 4000 NTU. The sensor emits a beam of 850 nm near infrared light into the sample where it is scattered by particles suspended in the water. The amount of back scattered light returning to the sensor is measured and correlated to the turbidity or the amount of suspended solids in the sample.
Find Out MoreTriton® TR8 Series Turbidity Sensors
The Triton TR8 is a nephelometric turbidity sensor designed for use in water and wastewater. Turbidity, the cloudiness or haziness of a water sample, is caused by particles suspended in the water, typically clay and silt. Since bacteria and viruses can be a3ached to these particles, turbidity has become a critical indicator of the overall water quality.
Find Out MoreTriton® TR86 Series Turbidity Sensors
The Triton.TR86 sensor is designed for the continuous measurement of turbidity and suspended solids in various ranges. The sensor emits a beam of 850 nm near infrared light into the sample where it is scattered by particles suspended in the water. The amount of back scattered light returning to the sensor is measured and correlated to the amount of turbidity and suspended solids in the sample
Find Out MoreNutrient Analyzers
HYDRA® Nitrate Analyzer
The HYDRA-NO3 can be used to monitor the Total Nitrogen in the effluent. It requires sampling and the addition of a conditioning reagent to eliminate interferences from Chloride, Nitrite and bicarbonate.
Find Out MoreHYDRA® Ammonium Analyzer
The HYDRA Ammonium Analyzer measures the concentration of dissolved ammonium as nitrogen (NH4+ -N) in water. The sensor uses three electrodes to determine the NH4+ -N concentration, an Ammonium Ion Electrode, a Potassium Ion Electrode and a pH Electrode. It is designed for use in all kinds of water. Typical applications include monitoring environmental waters, lakes, streams and wells as well as wastewater treatment in aeration basins and effluent

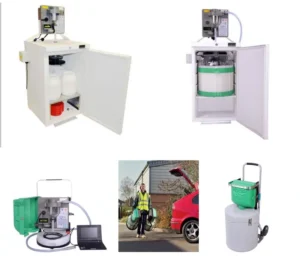

Find Out MoreWater & Wastewater Samplers
Aqua Series Pressure/Vacuum Design
Indoor/outdoor Stationary Sampler
AQUA-S
The ECD Analyzers range of stationary, refrigerated wastewater samplers consists of three models, the AQUA-S200, the AQUA-S320 and the rugged outdoor AQUA-S320H. At the heart of each is the well proven AQUA Sampling Module, a robust and reliable unit proven in thousands of applications worldwide and trusted by users as diverse as food manufacturers, water companies and the Environment Agencies. The air pump vacuum sampling system featured within the AQUA Module provides for an extremely accurate, reliable, representative and repeatable sample.
Portable Sampler
AQUA-P
The ECD Analyzers Portable Wastewater Sampler range is made up of three models: The very small AQUA-COMPACT, the passively cooled AQUA-COOLBOX, and the versatile multi bottle AQUA-MULTIX, providing complete sampling flexibility. All can be powered by 110/220 VAC POWER, or an external 12VDC supply, or via an integral battery that can provide up to 350 samples on a full charge. The air pump vacuum sampling system featured within every AQUA Module provides for a reliable, representative and repeatable sample without the weaknesses that can be associated with alternative sampling techniques.
