ICON Flow Meters & Level Transmitters

ProScan 3 Radar Level Transmitter (80GHz)

Corrosion Resistant Polypropylene Sensor & Body

2 Wire Loop Powered, 4-20mA Output

Bluetooth Connectivity

Range to 33′, 1.5″ Process Connection

Rated Nema 4X

Datasheet
Manual

ProScan 8002 Radar Level Transmitter (80GHz)

Digital Display for Programming & Level Monitoring

Corrosion Resistant PTFE or 316SS Antenna

2 Wire Loop Powered, 4-20mA Output

Range to 33′, 2″ Process Connection

Rated Nema 4X

Datasheet
Manual

MLR-70 Guided Wave Radar Level Transmitter

Digital Display for Programming & Level Monitoring

2 Wire Loop Powered, 4-20mA Output

Teflon Coated Stainless Steel Rod or Wire Rope

Rod Lengths to 7.0′, Wire Rope Lengths to 40′

Stainless Steel Process Connections

Rated Nema 4X Enclosure

Datasheet
Manual

UltraPro 2000 Ultrasonic Level Transmitter

Digital Display for Programming & Level Monitoring

Corrosion Resistant PTFE

2 Wire Loop Powered, 4-20mA Output

Range 1 to 33′

2″ Process Connection

Rated Nema 4X

Datasheet
Manual

100 Series Submersible Transmitter

Superior Corrosive & Chemical Resistance

Integrally Molded Weight Eliminates Floating

Ceramic Sensing Diaphragm

2-Wire Design, 4-20mA Output

Automatic Temperature Compensation

Accuracy +/- 0.50 %

PTFE Teflon® Jacketed Cable

IP68/Nema 4X

Datasheet
Manual

ShoPro Series Level Display & Controller

5 Digit LED Display (Sun Bright Technology)

Display of Level or Volume

Input 4-20mA

Output 2 X Relays/5A, 4-20mA

24 VDC Built-In Transmitter Power Supply

Nema 4X Polycrbonate Wall Mount Enclosure

Datasheet
Manual

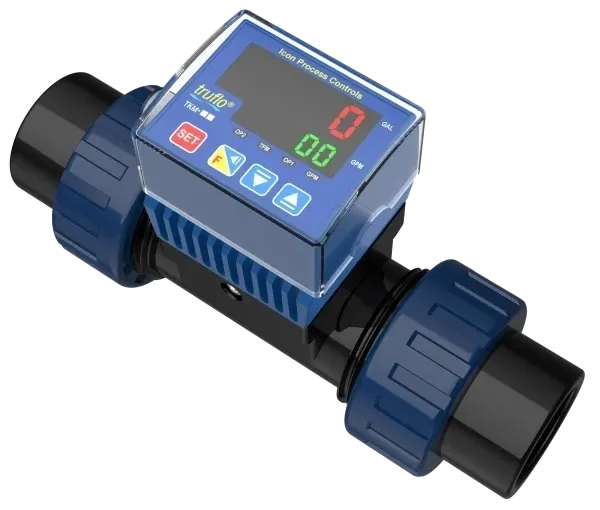

TKM Paddle Wheel Flow Meter

High Accuracy | ± 0.50% of Full Scale

No K-Factor Programming

Units of Flow Selectable LPM, GPM

Corrosion Resistant PVC, PP, PVDF, 316SS

Large/Bright Led Display of Flow & Total

Password Protected Security

True-Union Design ½ – 2″ | Flanged 3″ – 4″

M12 Quick Disconnect

LIFETIME GUARANTEE (Paddle Assembly)

Datasheet
TKM Manual

TCB (Battery Powered) Paddlewheel Flow Meter

Large/Bright LCD Display

Accuracy | ±1.0% of Full Scale

Flow & Total Indication GPM

Pulse Output

Corrosion Resistant

True Union Design 1″ to 3″ PVC

Easy Installation No Programming

Password Protected Security

Datasheet
TCB Manual

ProPulse Turbine Flow Meter

Flow Rates: 0.04 – 4.0 GPM/2.4 – 240.8 GPH

Accuracy ±1.0 – 2.0% of Full Scale

Pulse Output NPN/PNP

Corrosion Resistant PVDF

NEMA 4X Protection

Datasheet

ProPulse 2 Mini Turbine Flow Meter

Flow Rates: 0.01 – 4.28 GPM / 0.6 -256.8 GPH

Accuracy ±2.0% of Full Scale

Bright Led Display

Flow Units LPM or GPM

4-20mA or Pulse Outputs

Corrosion Resistant PVDF | PP

NEMA 4X Protection

Datasheet

TIM Series Insertion Paddlewheel Flow Meter Integral Electronics

Large Bright LED Display

Accuracy ±0.50% of Full Scale

Pipe Size ½ – 24″

Flow Rate + Totalizer | Resettable

Flow Velocity Range: 0.33 to 26 FPS

Eprom Memory Maintains Total

NEMA 4X | IP65 Protection

Flow Units LPM or GPM

4-20mA or Pulse Outputs Standard

Corrosion Resistant PVDF | PP Body

Zirconium Ceramic Rotor Teflon® Paddle

Retrofits into Signet® Type Fitting

LIFETIME GUARANTEE

Datasheet
TIM Manual

TIW Series Insertion Paddlwheel Flow Meter

Excellent Chemical Resistance

1/2″ – 24″ Line Sizes

Pulse Output

Accuracy ±0.50% of Full Scale

High Performance Tefzel Paddle

Zirconium Ceramic Shaft & Bearings

PVC, PP, PVDF, 316SS Housings

Retrofits into Signet® Type Fittings

LIFETIME GUARANTEE

Datasheet

TVF Series Flow Meter Display

6 Digit LED Display (Sun Bright Technology)

Display of Flow Rate, Flow Total & Batch

Inputs: Pulse or 4-20mA

Outputs: 2 Relays (5A) or 1 Relay (5A) & 4-20mA

Built-In Transmitter Power Supply

Voltage: 85 – 260 VAC

Nema 4X Polycarbonate Wall Mount Enclosure

Datasheet
TVF Manual

TI Series Installation Fitting

Excellent Chemical Resistance

PVC, PP, PVDF Body

1/2″ – 4″ Line Sizes

True Union Design

Will Accept Signet Paddle Sensors

Datasheet

SA Series Clamp-On Saddle

Chemical Resistance PVC Body

2″ – 8″ Line Sizes

Accommodates Sch 40 & Sch 80 Pipe

Will Accept Signet Paddle Sensors

Datasheet

UF500 Clamp-On Ultrasonic Flow Meter

LED Dot Matrix Display

Accuracy ±2.0% of Full Scale

Pipe Size ½ – 4″

Display of Flow Rate, Velocity, Totalizer/ Resettable

Flow Velocity Range: 0.3 to 15 FPS

Flow Units LPM or GPM

4-20mA & Pulse Output

NEMA 4X

Datasheet
UF500 Manual

IZON Remote Monitoring

LRT Series Long Range Wireless Transmitter

High RF Transmit Power, 2W

915MHz Operating Frequency Range

Transmit Distance 10 Miles Line of Sight

2 Miles Industrial Environment

Inputs: Analog 4-20mA, Digital

Outputs: Analog 4-20mA, Digital

Input Power Supply 12-36 VDC, 1A

Nema 4X Rated

Datasheet
Manual
