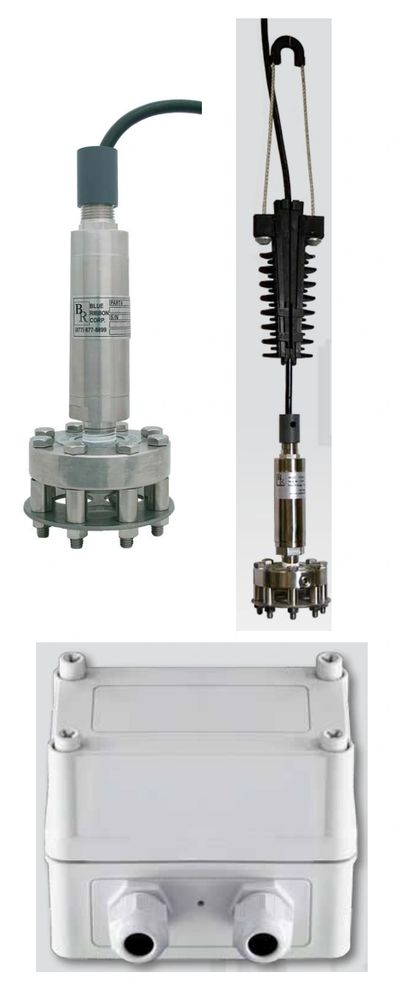

Blue Ribbon Submersible Transducers

---

The Patented Birdcage design provides a Heavy Duty 316 Stainless Steel Diaphragm Seal with Protective Stand off plate that protects the Flush Diaphragm from the elements.

The Model BCH2000 Cable Hanger from Blue Ribbon Corporation is designed to eliminate unnecessary stresses on the transmitter while installed in the application. Affordably priced, the BCH2000 Cable Hanger is designed for easy installation within a variety of environments.

The Model BCJ4000 Junction box from Blue Ribbon with an IP66 rated corrosion resistant enclosure is designed specifically for water and waste water applications. The VALOX construction, non-metallic screws and hydrophobic vent filter provide a maintenance free option to sheet steel J-boxes and the convenient 3 pole terminal strip allows for simple hook-up with the Blue Ribbon BCP3000 lightning surge protector and Bird Cage level transmitter.

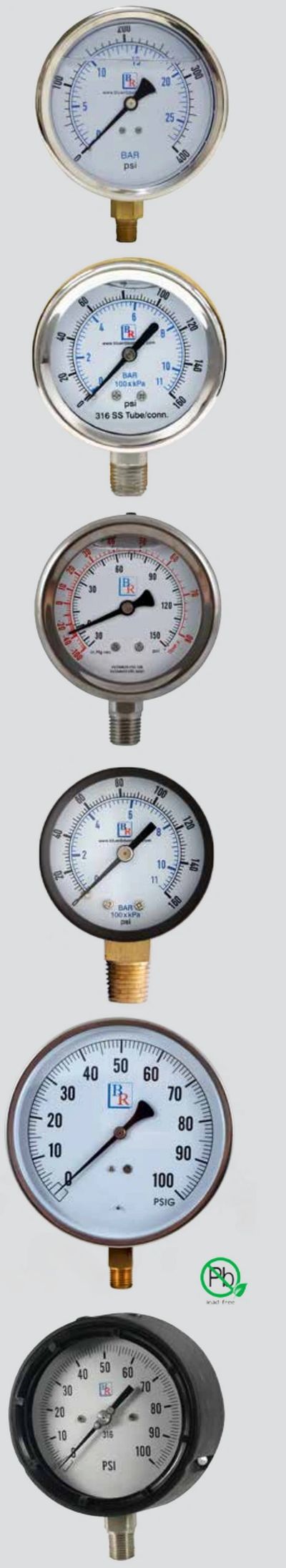

• Dial Sizes: 1½", 2", 2½", 4", and 6"

• High quality line of liquid filled gauges, also available dry

• Glycerine fill dampens vibration to help extend the life of the gauge

• Bottom and back connections

• 1/8", ¼", and ½" (M)NPT

The Model BR300 series from Blue Ribbon Corporation is a high-quality dry or liquid-filled, all stainless steel back or bottom mount gauge for applications where brass may not be an option.

The Model BR250L from Blue Ribbon Corporation is a high quality line of liquid filled gauges. Its crimped, welded stainless steel bezel and glycerine fill is designed for gas or liquid applications that require damping.

• Dial Sizes: 1½", 2", 2½", and 4"

• An inexpensive utility gauge for the broad commercial market

• Suitable for air, water, oil, gas or any other media not corrosive to brass

• Available in bottom or center connect 1/8" or ¼" (M) NPT

• Accuracy: 3-2-3%

The Model BR601D from Blue Ribbon Corporation is a family of durable contractor pressure gauges, designed to meet the needs of contractors involved in HVAC, plumbing, and industrial and commercial refrigeration applications. Quality and affordability make this series the most attractive gauge for any project where bronze internals are suitable for use.

Model BR400/BR800 Series from Blue Ribbon Corporation are a family of highly rugged stainless steel and brass process pressure gauges. They are designed to provide reliable process pressure measurements within safety critical environments such as oil and gas, chemical processing, power stations, environmental engineering and plant construction environments.

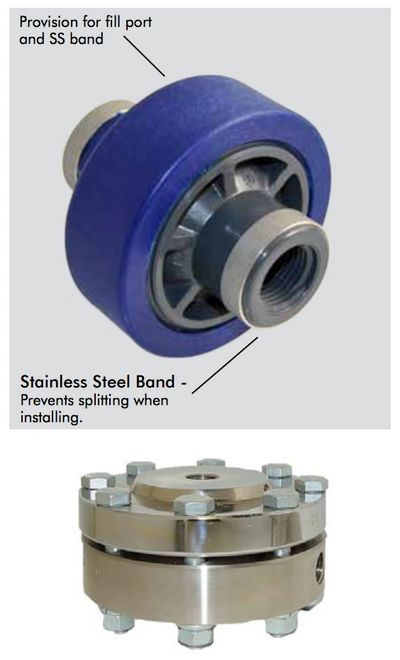

The Series 3000 from Blue Ribbon Corporation is a Teflon diaphragm seal or isolation device with PVC construction, used to provide economical protection of pressure sensing instrumentation from measured media. This Series is particularly useful for the economical protection of instrumentation from corrosion and clogging, and offers an option for application where some materials may be limited by corrosion.

Used where process fluid is corrosive or potential clogging of the internal structure of pressure gauge or other like pressure measuring instrument.

2 Piece Construction for severe process. Flushing Connection Available. Stainless Steel Diaphragm for 30 PSI to 2500 PSI, Viton for 30” VAC to 100 PSI.

• All Stainless Steel Construction

• 3" (75mm) and 5" (127mm) dial size

• Glass Lens

• Anti-Parallax Dial

• Vibration resistant design for reduced needle flutter

• Fast Response

• Hermetically sealed IP68

• Accuracy: ±1% Full Scale

• Welded Stem

• All Stainless Steel Construction

• Adjustable Angle Connection

• 3" (75mm) and 5" (127mm) dial size

• Glass Lens • Anti-Parallax Dial

• Vibration resistant design for reduced needle flutter

• Fast Response

• Hermetically sealed IP68

• Accuracy: ±1% Full Scale

• Welded Stem

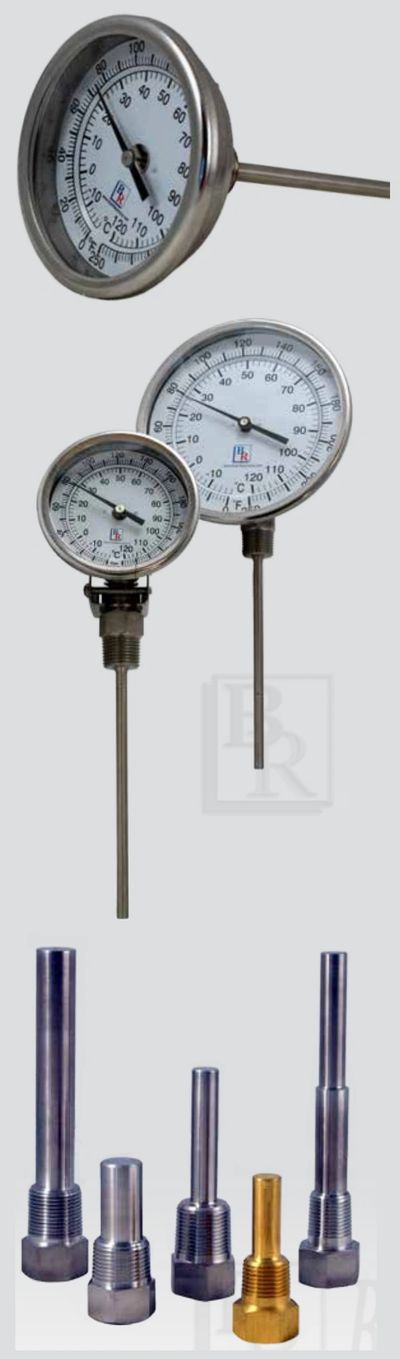

Model BRTW bimetal threaded thermowells from Blue Ribbon Corporation are designed to protect the thermometer from possible exposure to process media that may be corrosive or under pressure. Thermowells also facilitate removal of the industrial thermometer without interruption of the process. Their durable design offers high reliability and media compatibility in a range of sizes and materials.

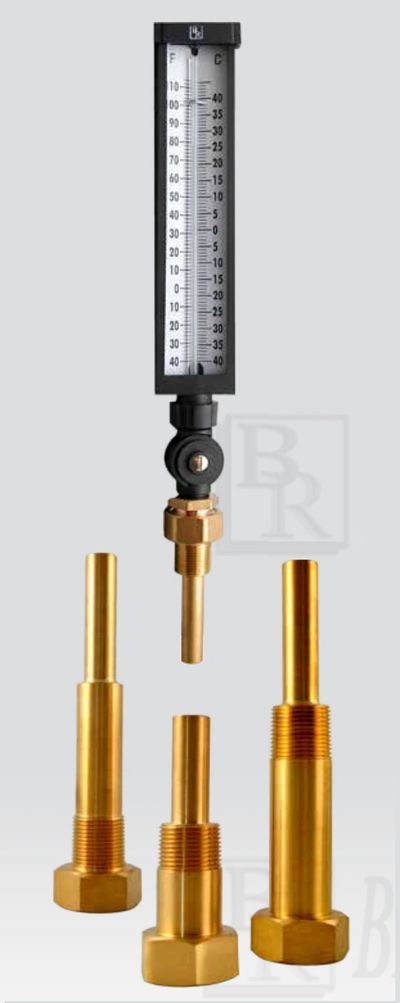

• Two screws permit 180° case rotation and stem positioning in 10° increments, for easy viewing adjustment

• Available in 3.5” and 6” stem lengths

• Blue spirit filled thermometer set inside V-shaped aluminum scale with high-contrast black on white numeric scale for easy reading

• NIST traceable calibration with guaranteed accuracy to ±1 scale devision

• Black enameled die cast aluminum construction with glass front minimizing dirt and dust build up for ranges up to 400 °F (200 °C)

• Optional plastic face

• 1¼–18 UNEF swivel nut connection assembly with tapered bulb chamber for proper well seating

• Available in Straight Form and 90° Back Angle

• Designed for use with all 9" (228mm) Industrial thermometers.

• Allows for easy replacement of thermometer without interruption of the industrial process.

• Protects thermometer from exposure to the process media.

• 1-year warranty
