Sigma Controls

EZ-C Digital Process Meter


THE EZ-C PANEL METER PROVIDES CONTINUOUS LEVEL MONITORING

Σ Displays process in numeric and bar graph format

Σ Completely user programmable

Σ Selectable engineering units list or customize

Σ Offers Up to 4 Relay alarm or control outputs  with setpoint and deadband adjustment

Σ 100MA of 24VDC sensor power ‘On-Board’

Σ User configurable linearizer

Σ Scaleable 4/20MA or 0-10V analog output

Σ Backlit graphical LCD display

Σ Panel mount 1/8 DIN

Σ Opto Isolated Rate input

Σ Dip switch position on screen

Submersible Level Transmitters

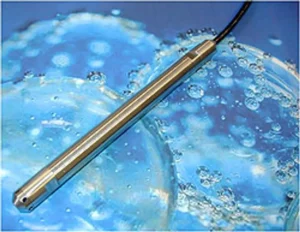

5000MP SMALL BORE SUBMERSIBLE LEVEL TRANSDUCER

• Ultra Small Diameter .690 Inch

• Two Wire 4/20MA and/or Digital Output

• Active Temperature Compensation

• 316SS Construction

• .5% Full Scale Accuracy

• Solid State Piezo Sensor

• No Vent Tubes

• Fully Repairable

• RS485 MODBUS Output

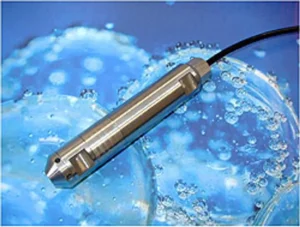

6000MP MICROPROCESSOR BASED LEVEL TRANSMITTER

* Small 1.25” Diameter

• Analog/Digital Output

• Ultra Stable/High 0.2% Accuracy

• 316SS Construction

• Active Temperature Compensation

• Integral Surge Protection

• No Vent Tubes or Desiccants

• Fully Repairable

• 4-20MA and RS485 MODBUS Outputs

• Calibrate Unit in the Field

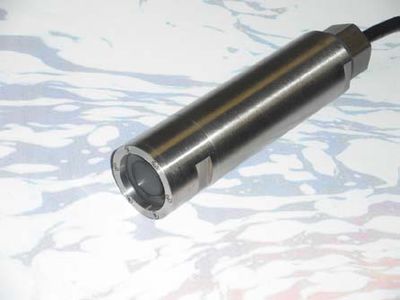

6100MP LARGE DIAPHRAGM SUBMERSIBLE LEVEL TRANSMITTER

• Continuous Output

• Non Fouling Flush Diaphragm Design

• For Sludge & Sewage Applications

• 316SS Construction

• Teflon, 316SS, Viton Diaphragms

• Microprocessor Based Electronics

• Ultra Stable/High 0.2% Accuracy

• 4/20MA and RS485 MODBUS Outputs

• Ranges to 115 Feet Water Plus

• No Desiccants or Breather Tubes

• Stand Off Option

• Fully Repairable & Calibrate Unit in the Field


6200MP NON FOULING SUBMERSIBLE LEVEL SENSOR

• Continuous Output

• Non Fouling Flush Diaphragm Design

• For Sludge & Sewage Applications

• 316SS Construction

• Viton Diaphragm

• Microprocessor Based Electronics

• Ultra Stable/High 0.2% Accuracy

• 4/20MA and/or MODBUS Outputs

• Ranges to 70 Feet Water Plus

• No Desiccants or Breather Tubes

• Fully Repairable & Calibrate Unit in the Field

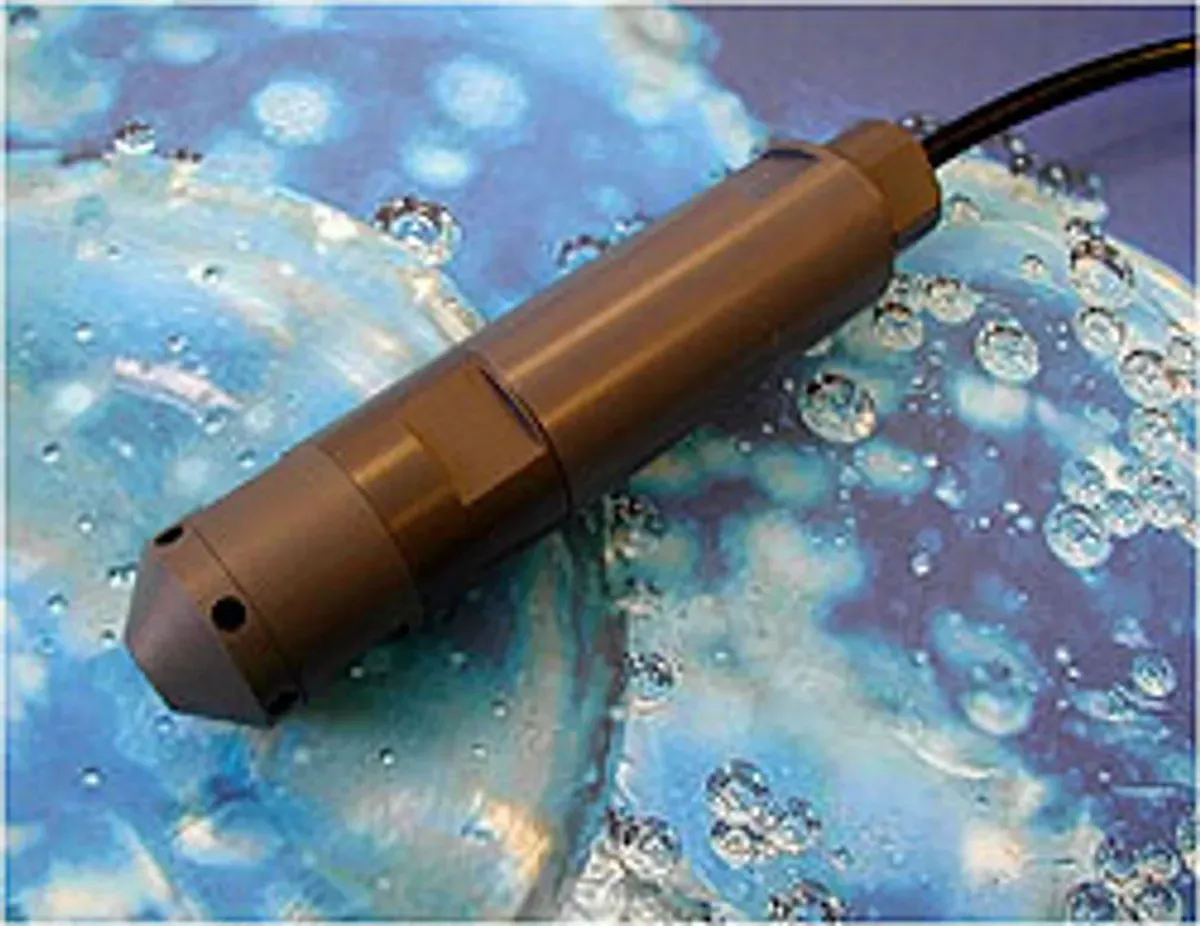

7000MP PVC Submersible Level Transmitter

* Small 1.25” Diameter

* Analog/Digital Output

* Ultra Stable/High 0.2% Accuracy

* Non Metallic PVC Construction

* Active Temperature Compensation

* Integral Surge Protection

* No Vent Tubes or Desiccants

* Fully Repairable

* RS485 MODBUSÒ Outputs

* Calibrate in  the Field

Pressure Transmitters


SIGMA SERIES 9000PT/N4 INDICATING PRESSURE TRANSMITTER

  Nema 7 or Nema 4X Enclosure

• Microprocessor Electronics

• Accuracy +0.1% Total Errors

• All 316SS Wetted Parts

• Analog 4/20MA and/or Digital Output  (MVNET or MODBUS®) or ASCII

• Wide Selection of Ranges

• Local Digital Display .5” High, 4 Digit LCD  with User Programmability

• ½” NPT (F) Connection

• ‘On Board’ Surge Protection

• Up to 128 Units on a Single Cable Data Highway

• 19.2K BAUD Data Transmission

• NEMA 4/7 Explosion Proof Enclosure with  Viewing Window
