HARDWIRED SYSTEMS

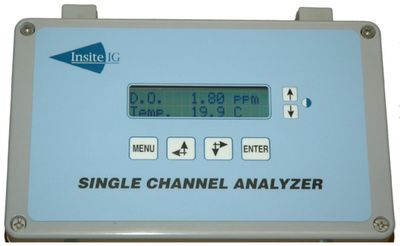

- Single Channel Analyzer

Sensors Available for Measuring Dissolved Oxygen, Suspended Solids, pH, and ORP.


SMART SENSORS—PLUG AND PLAY COMPATABILITY


The InsiteIG Single Channel Analyzer is a unique sys-tem that combines advanced electronics with solid-state, smart sensors. The analyzer will accept any standard InsiteIG DO, SS, pH, or ORP sensor and automatically configures for the correct operation. The system allows for flexible and economical process monitoring and control.


For more details and full specifications, refer to PDF below.

View PDF

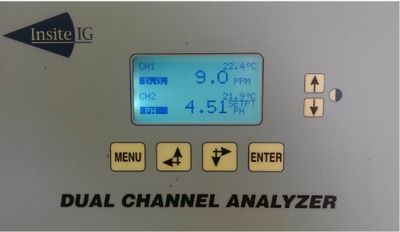

- Dual Channel Analyzer

Sensors Available for Measuring Dissolved Oxygen, Suspended Solids, pH, and ORP.


SMART SENSORS


The InsiteIG Dual Channel Analyzer is a unique system that combines advanced elec-tronics with solid-state, smart sensors. The analyzer will accept any combination of two standard DO, SS, pH, or ORP sensors and automatically configures for the correct oper-ation. The system allows for flexible and economical process monitoring and control.



For more details and full specifications, refer to PDF below.

View PDF

- MPA 48 Multi-Parameter Analyzer

Sensors Available for Measuring Dissolved Oxygen, Suspended Solids, pH, and ORP.


4-8 SENSORS


The Insite Instrumentation Group MPA 48 multi-channel analyzer is a unique system that combines advanced electronics with the latest in sensor technology. The analyzer will accept any combination of DO, SS, pH, or ORP sensors and automatically configure for the correct operation. The system allows for flexible and economical process monitoring and control.


For more details and full specifications, refer to PDF below.

WIRELESS SYSTEMS

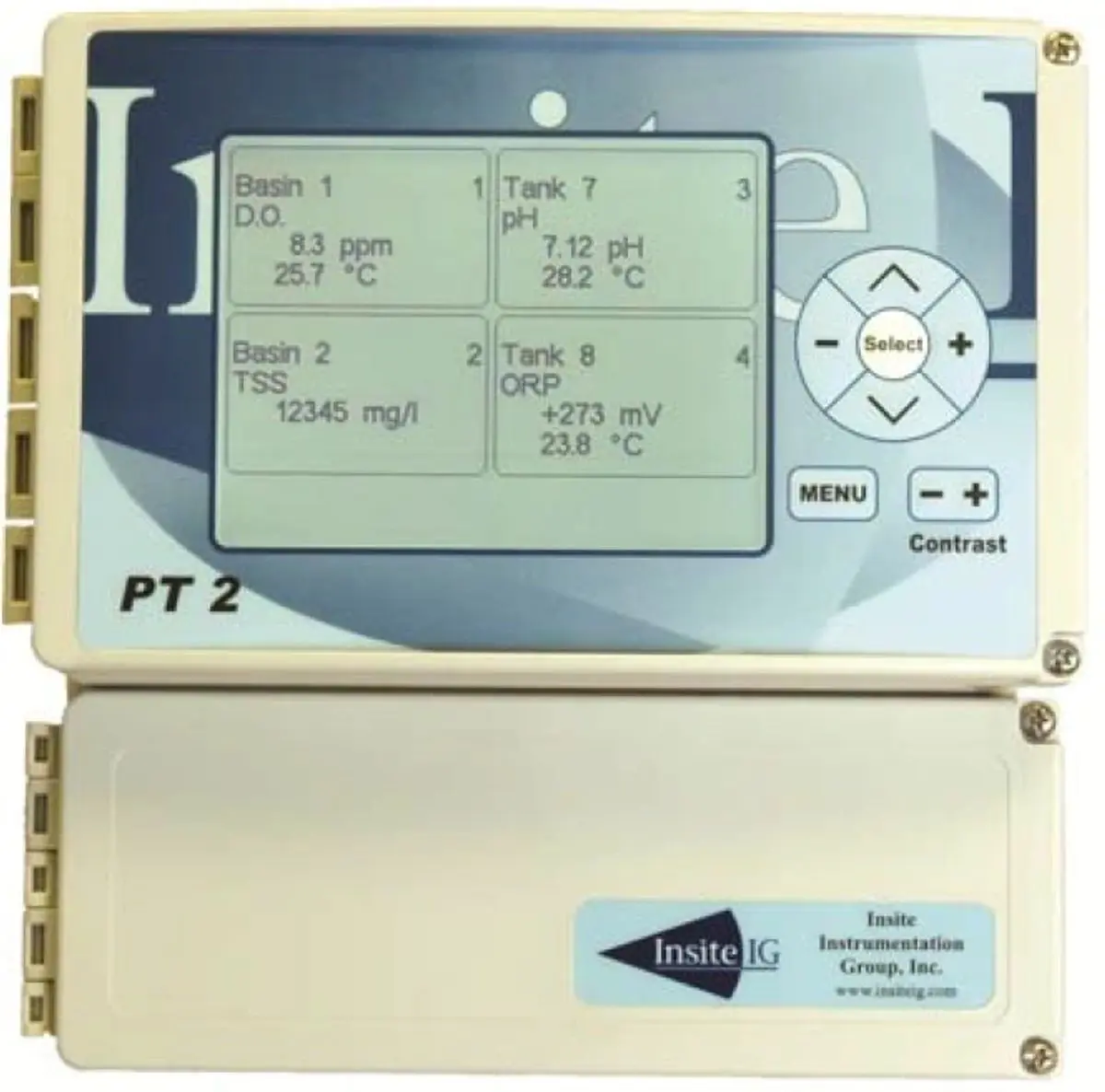

- PT2 Wireless Multiparameter Analyzer

Sensors Available for Measuring Dissolved Oxygen, Suspended Solids, pH, and ORP. Any sensor combination.


WIRELESSLY COMMUNICATES WITH UP TO 16 SENSORS.


The Insite Instrumentation Group PT2 multi-channel analyzer is a unique system that combines advanced electronics with the latest in sensor technology. The analyzer will wirelessly communicate with up to 16

sensors and accepts any combination of DO, SS, pH, or ORP sensors. The system allows for flexible and economical process monitoring and control.

View PDF

- Model 20 Dissolved Oxygen Sensor

WIRELESS COMMUNICATIONS WITH THE ANALYZER


The Insite Instrumentation Group Model 20 dissolved oxygen sensor is a unique product that combines advanced electronics with solid-state, optical sensing technology. The sensor is based on the field proven design of the Model 10 family of sensors with over 10,000 units shipped. To this proven design, the Model 20 adds the ability to mount the sensors throughout the plant without having to deal with running conduit between the sensor and analyzer. This allows for significant savings on installation costs while also allowing maximum flexibility in sensor placement. No other dissolved oxygen sensor can compare with the features and benefits of this revolutionary design.

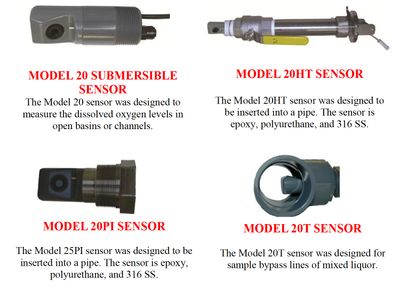

MODEL OPTIONS:

Model 20 Submersible Sensor

The Model 20 sensor was designed to measure the dissolved oxygen levels in open basins or channels.

Model 20HT Sensor

The Model 20HT sensor was designed to be inserted into a pipe. The sensor is epoxy, polyurethane, and 316 SS.

Model 20PI Sensor

The Model 25PI sensor was designed to be inserted into a pipe. The sensor is epoxy, polyurethane, and 316 SS.

Model T Sensor

The Model 20T sensor was designed for sample bypass lines of mixed liquor.

View PDF

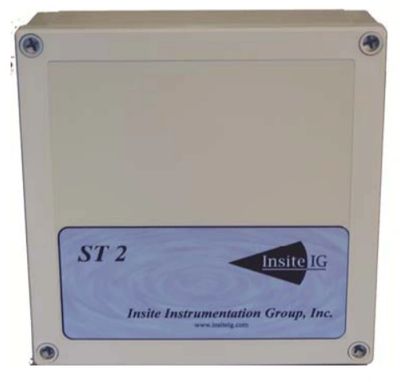

- ST2 Sensor Transmitter & Power Supply

WIRELESSLY CONNECTS SENSORS WITH THE PT2 ANALYZER


The Insite Instrumentation Group ST2 will wirelessly connect any series 20 sensor with the PT2 process analyzer. Compatible sensors include DO, SS, pH, and ORP sensors. The system allows for flexible and economical process monitoring and control.

View PDF

- ST3 Third-Party Sensor Transmitter

WIRELESSLY CONNECTS THIRD PARTY SENSORS TO THE PT2 MESH NETWORK


The ST3 transmitter will allow any sensor or instrument with a 4-20 mA output to be included in an Insite PT2 wireless network. This makes it possible for the readings from those units to be displayed and trended alongside the readings from Insite Model 20 series sensors at the PT2.

View PDF

PORTABLES

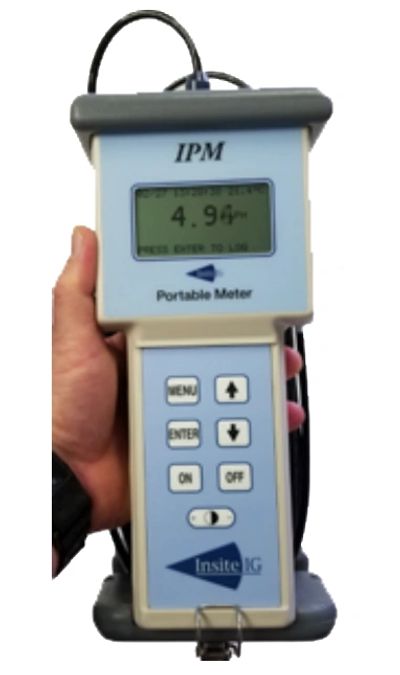

- InsiteIG Portable Meter / PortaCaddie / Meters

Dissolved Oxygen—Suspended Solids—pH—ORP

The InsiteIG Portable Meter is a unique instrument that combines advanced electronics with exceptional functionality and ease of use. The meter will accept any standard portable DO, SS, pH, or ORP sensor and will automatically configure itself for the correct operation. The quick-disconnect, mil-spec connectors allow for quick sensor swaps. The meter includes a 250 point data logger that records sensor type, sensor reading, date, time, and location.

View PDF
