Chemical Feed Equipment

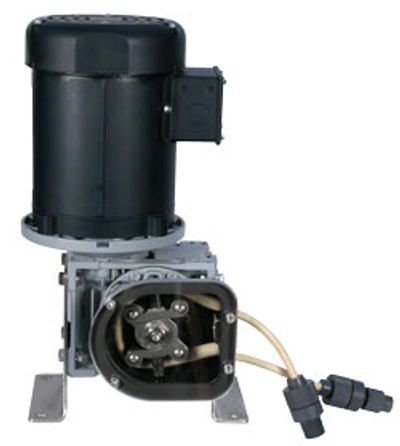

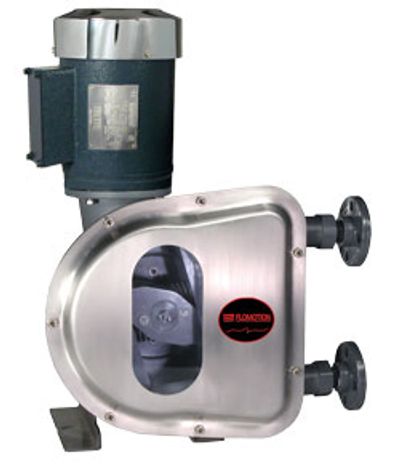

FLOMOTION 2001V SERIES INDUSTRIAL HOSE PUMPS

 Exceptional self-priming capabilities make the 2001V Series an ideal choice for hard-to-handle chemicals such as sodium hypochlorite, hydrogen peroxide or viscous polymers. An extremely wide range of flow outputs can be obtained by simply changing the tubing size.

One size pumphead accepts five standard tubing sizes. The spring loaded pumphead rollers provide extended tubing life and automatically compensate for minor variations in pump tube wall thickness. The V Series pump system allows you to mount the controller on the wall...away from the harsh environment.

An optional tubing rupture detector will automatically shut down the pump and signal an alarm in the event of a tubing leak. Used in conjunction with the unique sealed pump design the FLOMOTION Tubing Rupture Detector helps to protect operators and other equipment from potentially dangerous fumes and chemicals.



2001V FEATURES

  • Flows to 50.2 GPH, Pressures to 100 psi.
  • Rugged industrial drive uses standard 56C face motors.
  • Seal-less pumping technology.
  • Self-priming - suction lifts to 30 ft.
  • No check valves - few moving parts.
  • Various long life chemical resistant tubing options available.
  • Dry run capability.
  • Remote wall mount controller with LED digital display & integral keypad in NEMA 4X enclosure.
  • User selectable manual or automatic control.
  • Automatic control via 0-10VDC, 4-20mA or RS485 inputs.

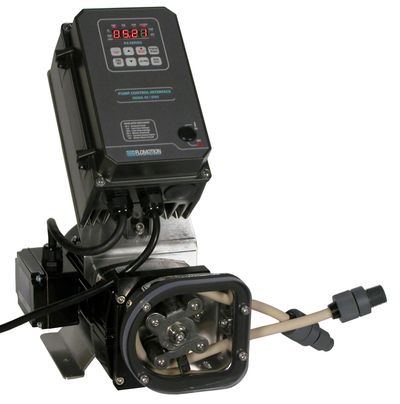

FLOMOTION 2001H SERIES COMPACT INDUSTRIAL HOSE PUMPS


Exceptional self-priming capabilities make the H Series peristaltic pumps an ideal choice for hard-to-handle chemicals such as sodium hypochlorite, hydrogen peroxide or viscous polymers. An extremely wide range of flow outputs can be obtained by simply changing the tubing size.

The versatile NEMA 4X motor drive controller may be conveniently mounted directly on the pump or remotely on a wall or panel. One size pumphead accepts six standard tubing sizes. The spring loaded pumphead rollers provide extended tubing life and automatically compensate for minor variations in pump tube wall thickness.

An optional tubing rupture detector will automatically shut down the pump and signal an alarm in the event of a tubing leak. Used in conjunction with the unique H Series sealed pump design the FLOMOTION Tubing Rupture Detector helps to protect operators and other equipment from potentially dangerous fumes and chemicals.



FEATURES

  • Flows to 50.2 GPH, Pressures to 100 psi.
  • Seal-less pumping technology.
  • Self-priming - suction lifts to 30 ft.
  • NEMA 4X controller.
  • No check valves - few moving parts.
  • Various long life chemical resistant tubing options available.
  • Dry run capability.
  • LED digital display & integral keypad.
  • User selectable manual or automatic control.
  • Automatic control via 0-10VDC, 4-20mA.

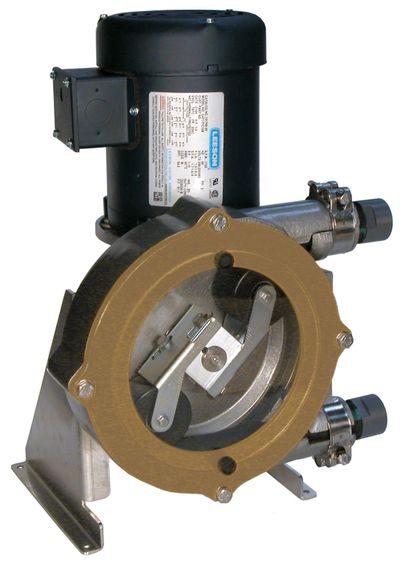

FLOMOTION 4001V ANACONDA INDUSTRIAL HOSE PUMPS

Exceptional self-priming capabilities make the 4001V Series an ideal choice for hard-to-handle chemicals such as sodium hypochlorite, hydrogen peroxide or viscous polymers.

An extremely wide range of flow outputs can be obtained by simply changing the tubing size.

One size pumphead accepts five standard tubing sizes. The spring loaded pumphead rollers provide extended tubing life and automatically compensate for minor variations in pump tube wall thickness.

The 4001V Series pump system allows you to mount the controller on the wall, away from the harsh environment.

An optional tubing rupture detector will automatically shut down the 4001V pump and signal an alarm in the event of a tubing leak. Used in conjunction with the unique 4001V sealed pump design the FLOMOTION Tubing Rupture Detector helps to protect operators and other equipment from potentially dangerous fumes and chemicals.



4001V FEATURES

  • Flows to 280 GPH
  • Pressures to 75 psi.
  • Rugged industrial drive uses standard 56C face motors.
  • Seal-less pumping technology.
  • Self-priming - suction lifts to 20 ft.
  • No check valves - few moving parts.
  • Non-lubricant filled pumphead.
  • Various long life chemical resistant tubing options available.
  • Dry run capability.
  • Remote wall mount controller with digital display & integral keypad in NEMA 4X enclosure.
  • User selectable manual or automatic control.
  • Automatic control via 0-10VDC, 4-20mA or RS485 inputs.

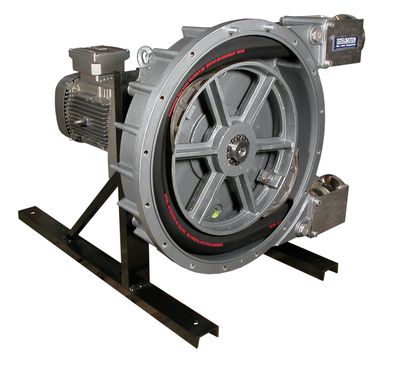

FLOMOTION FR SERIES INDUSTRIAL HOSE PUMPS

The FR Series is a two roller Peristaltic pump designed to handle abrasive slurries, viscous fluids, and aggressive chemicals that are normally difficult to pump with other types of positive displacement technologies. The FR Series is an ideal choice for metering, batching and transfer applications. Peristaltic pumps are becoming the standard for hard to handle fluids such as Sodium Hypochlorite that off-gas and vapor-lock diaphragm pumps. Five models are available that offers a wide range of flow rate outputs. Newer hose materials offer better chemical resistance and longer life in demanding applications.

Only the inside of the hose and hose inserts are in contact with the aggressive and contaminated fluids. This means that they can be processed without attacking the rest of the pump components as often happens with other pumping technologies. They have the ability to pass solids in the material being pumped as large as 20% of the hose ID. Dry-run capability and self-priming up to 20 ft. allows tank and line stripping. Will handle fragile fluids with little wear.

FR Series hoses are compatible with many other manufacturers pumps. Hoses are constructed of natural rubber, EPDM, Buna N, Hypalon, Viton.

Reversible operation allows pumping in both directions.



FR SERIES FEATURES

  • Flow rates from 1 to 46 GPM (60 to 2760 GPH).
  • Outlet Pressures to 60 psi.
  • Fully self-priming up to 20 ft.
  • No mechanical seal or stuffing box.
  • Suitable for aggressive or viscous fluids.
  • Metering of very corrosive chemicals.
  • Damage-free continuous dry running.
  • Adjustable flow output with VFD controller.
  • Inverter Duty, Explosion-Proof and Chemical-Duty motor options.
  • Very easy maintenance.
  • Heavy-duty bearings, greased for life.
  • Two-year warranty.
  • Bidirectional operation.
  • Close coupled, compact footprint.
  • Low sound level: < 70 dB at 3 ft.


FLOMOTION FS SERIES INDUSTRIAL HOSE PUMPS

The FS Series of peristatlic pumps provide high levels of volumetric accuracy for sampling and metering applications. FS Series pumps are available in 15 different sizes that provide flow rates up to 38,000 GPH. The low maintenance, seal-less design eliminates leaks, contamination and wear problems associated with difficult to seal products.

Only the inside of the hose and hose inserts are in contact with the aggressive and contaminated fluids. This means that they can be processed without attacking the rest of the pump components as often happens with other pumping technologies. They have the ability to pass solids in the material being pumped as large as 20% of the hose ID. Dry-run capability and self-priming up to 32 ft. allows tank and line stripping. Will handle fragile fluids with little wear.

FS Series hoses are compatible with many other manufacturers pumps. Hoses are constructed of natural rubber, NBR, EPDM, Hypalon, FKM. Reversible operation allows pumping in both directions and durable construction of ductile iron and steel construction allow higher discharge pressures up to 217 psi.



FS SERIES FEATURES

  • Flow rates from 0.02 to 387 GPM (1 to 23,220 GPH).
  • Outlet Pressures to 217 psi.
  • Fully self-priming up to 32 ft.
  • No mechanical seal or stuffing box.
  • Suitable for aggressive or viscous fluids.
  • Metering of very corrosive chemicals.
  • Damage-free continuous dry running.
  • Adjustable flow output with VFD controller.
  • Inverter Duty, Explosion-Proof and Chemical-Duty motor options.
  • Very easy maintenance.
  • Heavy-duty bearings, greased for life.
  • Two-year warranty.
  • Bidirectional operation.
  • Close coupled, compact footprint.
  • Low sound level: < 70 dB at 3 ft.

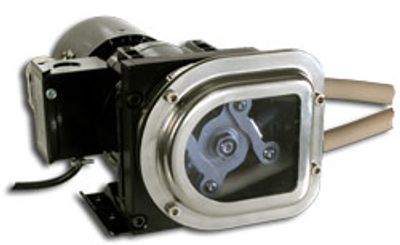

FLOMOTION 2001HSP SELF-PRIMING ANALYZER SAMPLE PUMP

Exceptional self-priming capabilities make the 2001HSP an ideal choice for hard-to-handle chemicals such as sodium hypochlorite, hydrogen peroxide or viscous polymers. An extremely wide range of flow outputs can be obtained by simply changing the tubing size.

One size pumphead accepts six standard tubing sizes. The spring loaded pumphead rollers provide extended tubing life and automatically compensate for minor variations in pump tube wall thickness. The 2001H Series pump system allows you to mount the controller on the wall...away from the harsh environment.

An optional tubing rupture detector can automatically shut down the 2001V pump and signal an alarm in the event of a tubing leak. Used in conjunction with the unique 2001H sealed pump design the FLOMOTION Tubing Rupture Detector helps to protect operators and other equipment from potentially dangerous fumes and chemicals.



2001HSP FEATURES

  • Flows from 20 to 648 ml/min (0.3 to 10.3 GPH).
  • Totally enclosed NEMA TEFC motor.
  • Seal-less pumping technology.
  • Self-priming - suction lifts to 30 ft.
  • No check valves - few moving parts.
  • Various long life chemical resistant tubing options available.
  • Dry run capability.

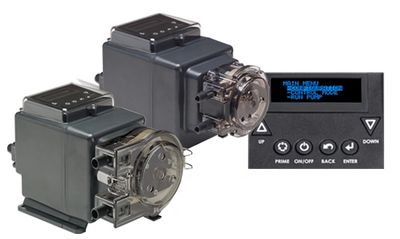

Stenners S Series Multifunction Peristaltic Pump

Flow Rate Outputs


0.40 to 150.0 gpd, pressures to 25 psi maximum
0.05 to 60.0 gpd,  pressures to 100 psi maximum



The LED operating display is easy to navigate with intuitive programming.

Select from the various modes of operation:


                – 4-20mA – scalable, invertible
                – 0-10VDC – scalable, invertible
                – Pulse
                – Hall Effect
                – PPM Feed Constant Flow – Flow Switch
                – PPM Feed Variable Flow – Hall Effect
                – Manual
                – 7 Day/24 Hour Timer
                – Cycle Timer

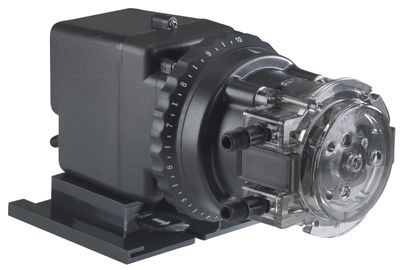

Stenner Classic Single Head Adjustable Output Peristaltic Pump

Flow Rate Outputs
0.2 to 85.0 gpd up to 25 psi max.
0.2 to 40.0 gpd up to 100 psi max.


The Single Head Adjustable Output Pump is one of four types in Stenner's Classic Series and is an ideal choice for treating problem water.


Unique Stenner Features

  • Interchangeable pump heads and tubes to convert one model to another without having to purchase a new pump.
  • Easy and fast tube replacement without tools with the QuickPro®  pump head.
  • The pump is built with three detachable components; the motor, feed rate control and the pump head that can be separated without tools.

How the Single Head Adjustable Output Pump Works


The output is determined by three factors; the rpm of the motor gears, the setting on the feed rate control and the pump tube size. The feed rate control has an external dial ring that is labeled L to 10 offering an adjustable output range from 5% to 100% in 2.5% increments.

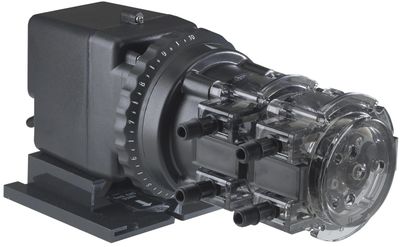

Stenner Classic Double Head Adjustable Output Peristaltic Pump

Flow Rate Outputs
0.3 to 170 gpd up to 25 psi maximum
0.3 to 34 gpd up to 100 psi maximum


Similar to the other models in the Classic series, the Double Head Adjustable Output Pump will dose solutions such as sodium hypochlorite, acid, polyphosphates, biocides for common water treatment applications. The pump can also inject two compatible solutions at the same ratio. The Classic Series double head adjustable output pump is built the same way as the single head adjustable with the addition of another pump head that doubles the output.


How the Double Head Adjustable Output Pump Works

The output is determined by three factors; the rpm of the motor gears, the setting on the feed rate control and the pump tubes in both heads. The feed rate control has an external dial ring that is labeled L to 10 offering an adjustable output of 5% to 100% in 2.5% increments.


Unique Stenner Features

  • Interchangeable pump heads and tubes to convert one model to another; not necessary to purchase a new pump.
  • Easy and fast tube replacement without tools with the QuickPro®  pump head.
  • The pump is built with four detachable components; the motor, feed rate control and two pump heads, that can be separated without tools

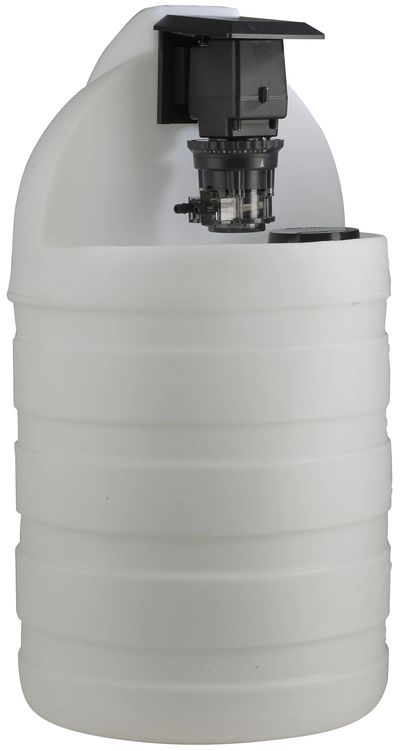

Stenner Tanks & Tank Systems

Tank System consists of the tank and pump.


FEATURES


• Shipped pre-assembled for easy installation and convenience

• Includes rain roof to help protect motor

• Vertically mounted for solution containment

• Child resistant lid

• Polyethylene construction is lightweight and rugged UV resistant gray or translucent white.
