Controllers

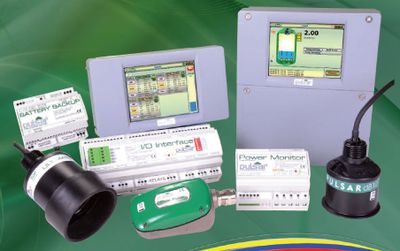

- Ultimate Controller

An integrated approach to pump control.



Pulsar Process Measurement’s Ultimate Controller is a pumping station control system that combines ultrasonic level and flow measurement, RTU and advanced pump control in one economic, easily programmed, modular unit with dedicated web server remote control, DNP (WITS) and touch-screen HMI.

View PDF

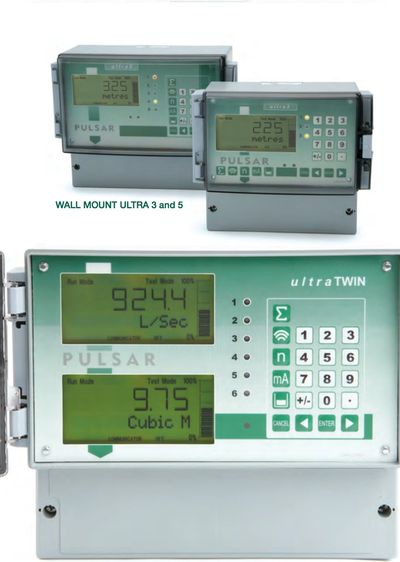

- Ultra 5

Ultra 5 continues where Ultra 3 leaves off, maintaining the same reliability, flexibility and menu-driven programming simplicity, with two extra relays, extra features for advanced pump control, differential level and open channel flow, plus the option of RS485 digital communication and 4–20 mA input.

View PDF

- Ultra 3

Ultra sophistication in a smart package, Ultra 3 combines reliable non-contacting ultrasonic level and volume measurement, high specification pump control and open channel flow measurement to international standards. Three control or alarm relays, optional data logging, Pulsar's world-leading DATEM echo processing software and a choice of wall, fascia, panel or 19” rack mounting.

View PDF

- UltraTWIN

Two independent ultrasonic systems in one unit. Each channel is user configurable to operate in any combination of: a full function open channel flow monitor calculating flow rate to BS ISO standards, a pump control system or as a level and volume monitoring unit for liquids or solids, calculating volumes and providing alarms. UltraTWIN features six relays configurable for either channel as well as four digital inputs and 2 x 4-20mA outputs.

View PDF

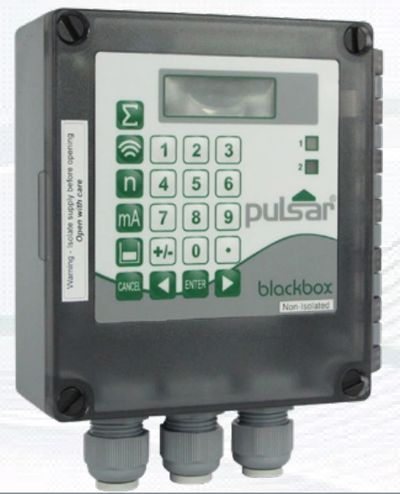

BLACKBOXES

All standard Blackbox units share a common IP67 enclosure with 3 cable glands fitted. A flashing LED indicates healthy operation. Programmed through PC using supplied software or Pulsar hand held programmer using RS232 via RJ11 port.

View PDF

- Blackbox130

Level

Non-contacting level measurement featuring a 4-20mA output, which can be supplied isolated or non isolated, proportional to level and two alarm or control relays.

View PDF

- Blackbox133

Level Control

Two control or alarm relays, with simple 0-5V output proportional to level to drive a local display. Simple 2 pump control with alternation is also included in the 133.

View PDF

- Blackbox134/135

Level Comms

Blackbox Level Comms retains the alarm relays of Blackbox 133, and adds an RS485 port for digital communications. Modbus (code 134), Profibus DP V0 or V1 (model 135)

View PDF

- Blackbox136

Level CSO

Pulsar’s blackbox 136 CSO is a sophisticated ultrasonic system specifically designed for use with batteries to provide non-contacting monitoring of level or overflow events, with exceptionally low power consumption to maximize battery life in remote locations. Also features on board data logging.

View PDF

SLUDGE BLANKET MEASUREMENT

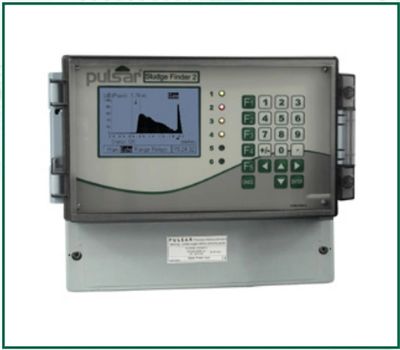

- Sludge Finder 2

Pulsar’s Sludge Finder 2 is a controller and transducer system that provides reliable continuous sludge blanket level measurement. It is used in thousands of applications worldwide for detecting sludge blanket levels in primary, secondary, tertiary settlement tanks either with stationary or traveling bridges, clarifiers, gravity thickeners or sequencing batch reactor (SBR) systems.

Find out more

Transmitters


IMP SERIES

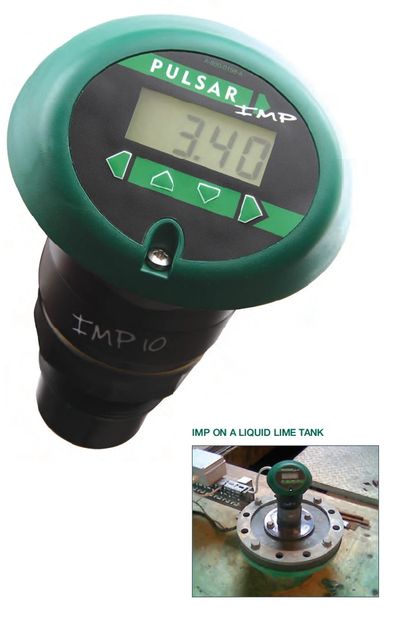

- IMP+

IMP+ can be used wherever you need reliable non-contacting ultrasonic level measurement and digital echo processing means IMP+ is perfect for slurries or liquids and anywhere you need a display telling you the level, or an analogue output to interface with your site control system or drive a display.

View PDF

- IMP+ I.S.

IMP+ I.S. is a combined transducer and controller in one self-contained unit and is I.S. certified to ATEX EEx ia IIC T4 and IECEx. IMP+ I.S. benefits from a specially designed digital echo processing technique and is available in three versions, 3m, 6m or 10m range. The full IMP range is available with the wetted parts in PVDF build alternative for corrosive or aggressive applications.

View PDF

- IMP Lite

IMP Lite is a lower cost alternative to the standard 2/3 wire version. IMP Lite is 2-wire configuration, includes RJ11 and is not suitable for flammable atmosphere use.

View PDF

- IMP PC Software

IMP PC software allows parameter access and echo trace viewing on screen. This easy-to-use software package stores calibration details of each IMP.

View PDF

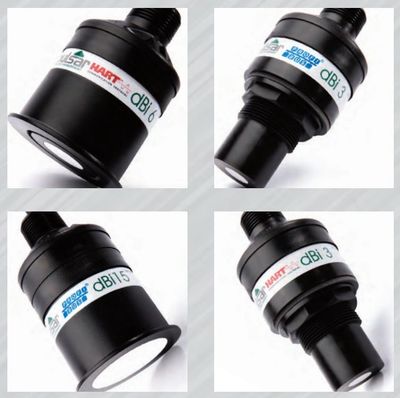

dBi SERIES

Pulsar’s Intelligent Transducers set new standards in communications and convenience for reliable plant and field based level measurement systems.

- dBi Transducers with HART protocol

Pulsar’s dBi Series Intelligent Transducers featuring HART are typically programmed either via one of the several hand-held calibrators available, or via PC interface. Measurement is signalled either via 4-20mA proportional to the measured value or using the HART protocol, modulated tones on the 4-20mA (1200/2200hz).

View PDF

- dBi Transducers with Profibus PA protocol

Pulsar use the high data speeds available with Profibus PA to provide full digital communications from a DATEM-enabled transducer. Complying fully with communications standards IEC 61158 and Profibus PA profile 3.0.2, dBi Series Transducers with Profibus provide very high resolution to give millimetre accuracy and a rapid response time of approximately 1 second.

View PDF

Sensors


Non-Contact Ultrasonic

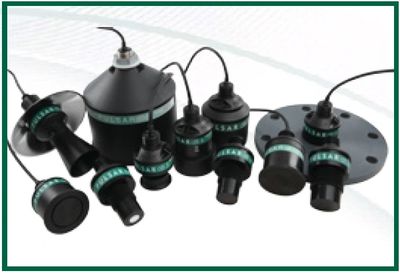

- dB Transducers

 The dB Transducer Series is a range of non-contacting ultrasonic transducers for level, volume and flow measurement. Available in a variety of models and compatible with all Pulsar controllers so that you have a specific solution to suit your application requirements.

View PDF

Non-Contact mmWave RADAR

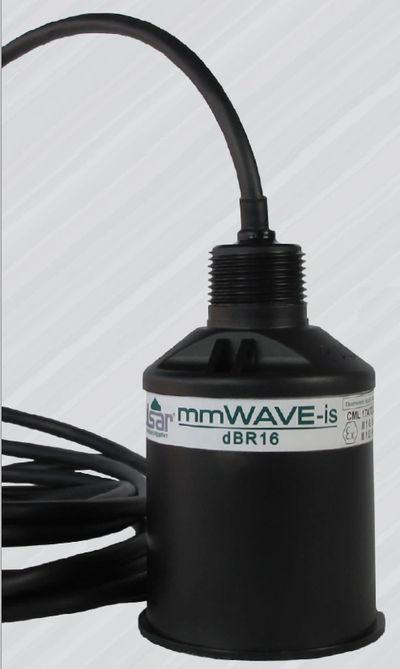

- mmWAVE RADAR

FMCW RADAR dBR sensor for non-contacting level and volume measurement


For the first time, users of Pulsar’s industry-leading non-contacting level measurement systems have the option of choosing either ultrasonic or non contacting FMCW RADAR for level, volume, flow and pump control applications. mmWAVE RADAR offers significant advantages over pulsed RADAR systems - higher resolution, better signal to noise ratio and better target discrimination.


Compatible with Pulsar’s standard controller, the mmWAVE RADAR dBR sensor benefits from Pulsar’s unique DATEM echo processing software.


VIEW PRODUCT VIDEO

View PDF

dBi SERIES

Pulsar’s Intelligent Transducers set new standards in communications and convenience for reliable plant and field based level measurement systems.

- dBi Transducers with Profibus PA protocol

Pulsar use the high data speeds available with Profibus PA to provide full digital communications from a DATEM-enabled transducer. Complying fully with communications standards IEC 61158 and Profibus PA profile 3.0.2, dBi Series Transducers with Profibus provide very high resolution to give millimetre accuracy and a rapid response time of approximately 1 second.

View PDF

- dBi Transducers with HART protocol

Pulsar’s dBi Series Intelligent Transducers featuring HART are typically programmed either via one of the several hand-held calibrators available, or via PC interface.

View PDF

Open Channel Flow


FLOW INDICATING/TOTALIZING TRANSMITTER

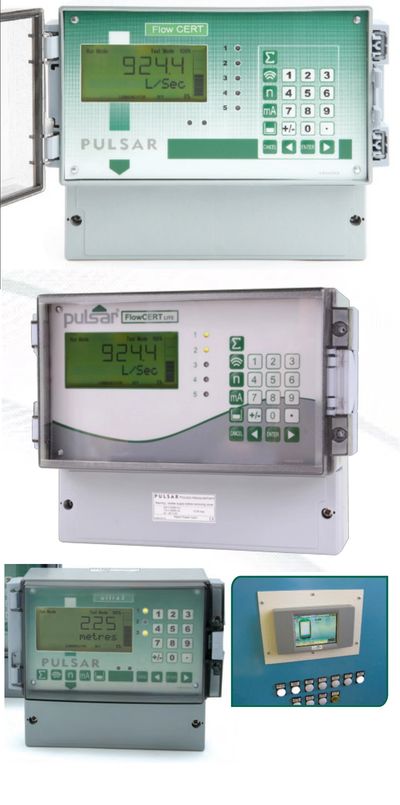

- FlowCERT

High accuracy flow on weirs, flumes and area x velocity

Pulsar’s FlowCERT system gives you everything you need for the industry's highest accuracy non-contacting ultrasonic measurement of open channel flows. Designed for flumes and weirs, FlowCERT gives temperature independent, reliable measurement and logging facilities. It includes five alarm/control relays plus 4 20mA output, datalogging, digital input with the ability to accept a velocity sensor input for non PMD applications. Programming the unit is a simple, menu-driven process. MCERTs class 1 approval when used with DUET.

View PDF

- FlowCERT Lite

The FlowCERT Lite open channel flow meter provides comprehensive flow monitoring with data logging and control functions for a complete range of flumes and weirs. It is compatible with a range of sensors in order to create a flow metering system to suit your application.

View PDF

- Ultra 3

Ultra sophistication in a smart package, Ultra 3 combines reliable non-contacting ultrasonic level and volume measurement, high specification pump control and open channel flow measurement to international standards. Three control or alarm relays, optional data logging, Pulsar's world-leading DATEM echo processing software and a choice of wall, fascia, panel or 19” rack mounting.

View PDF

- Ultimate Controller

An integrated approach to pump control.

Pulsar Process Measurement’s Ultimate Controller is a pumping station control system that combines ultrasonic level and flow measurement, RTU and advanced pump control in one economic, easily programmed, modular unit with dedicated web server remote control, DNP (WITS) and touch-screen HMI.

View PDF

SENSORS

- dB Mach 3

If customers can’t find it, it doesn’t exist. Clearly list and describe the services you offer. Also, be sure to showcase a premium service.

View PDF

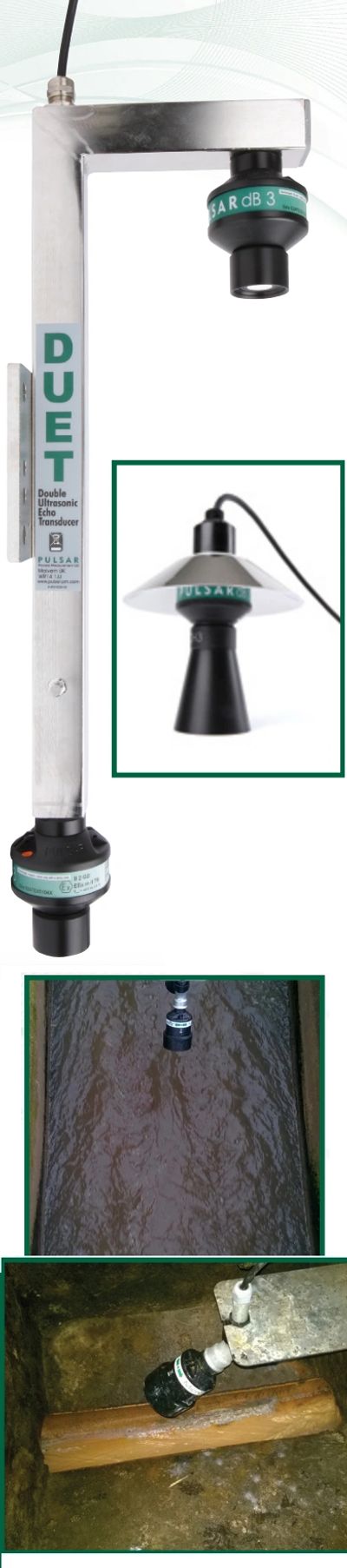

- DUET

Dual Ultrasonic Echo Transducer

FlowCERT and Pulsar’s unique twin transducer DUET, provides the highest accuracy non-contact ultrasonic flow measurement system available.

View PDF

Microflows:

- MicroFlow

Non-Contacting Liquid Flow Velocity Sensor

MicroFlow is a non-contacting liquid flow velocity sensor that uses microwave technology to transmit short pulses that reflect off a moving surface back to the sensor and are analyzed to determine the velocity. It is designed for open channel flow applications where the channel has no existing primary measurement device (e.g. weir or flume). Can be combined with a Pulsar level transducer and controller in order to provide a complete flow measurement system.


VIEW PRODUCT VIDEO

View PDF

- MicroFlow-i

Non-Contacting Loop Powered Liquid Velocity Sensor

MicroFlow-i is a non-contacting low power consumption microwave liquid velocity sensor. It can be installed as an individual sensor or used to provide HART communication protocol or a 4 20mA loop powered signal into a system. It’s extremely low power consumption makes it the ideal velocity solution for sewerage network monitoring (CSO) and all remote installations where mains power is unavailable.

View PDF

Closed Pipe Flow Monitor


- Flow Pulse

Flow Pulse® is a unique, non-invasive flow sensor that clamps to the outside of a pipe and is simply secured with a screwdriver. Flow Pulse offers you exceptional repeatability at a fraction of the cost of an equivalent magflow meter. It can reliably monitor flow across a variety of pipe materials including rigid plastic, stainless steel, cast iron and even corrugated pipes.

VIEW PDF

- Flow Pulse Handheld Controller

Flow Pulse Handheld Controller is an indispensable tool for portable flow monitoring, offering a toolset that allows programming, monitoring and data acquisition. The unit is available to connect to pre-installed Flow Pulse sensors or as a self-contained kit, with instant feedback via its clear colour screen. For true portability, the Handheld Controller will power a Flow Pulse directly, giving instant feedback on flow rate for a dynamic assessment of system or pump performance.

Find out more
