S80 Intelligent Sensors

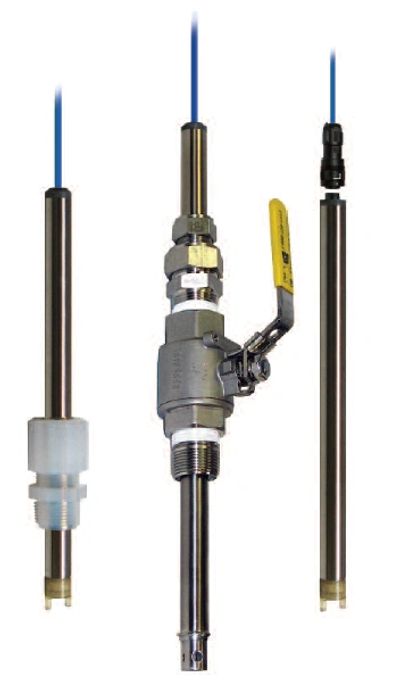

- Model S80 Intelligent Sensors

Electro-Chemical Devices offers a complete line of liquid analytical sensors: pH, ORP, Specific Ion, Dissolved Oxygen, Conductivity & Resistivity. The technical advantage of the Model S80 Intelligent Sensors are the 6 points of design flexibility to configure a sensor that best fits your application.



The S80 sensors have two Universal Sensor Designs; Insertion/Submersion or Valve Retractable with flaired end to prevent blow out. The standard Model S80 sensors have a rugged .” O.D. 316 stainless steel body with a 10 '. cable or an optional waterproof detachable cable assembly.


VIEW SENSOR CALIBRATION  VIDEO


VIEW SENSOR ELECTRODE REPLACEMENT VIDEO

View PDF

Transmitters

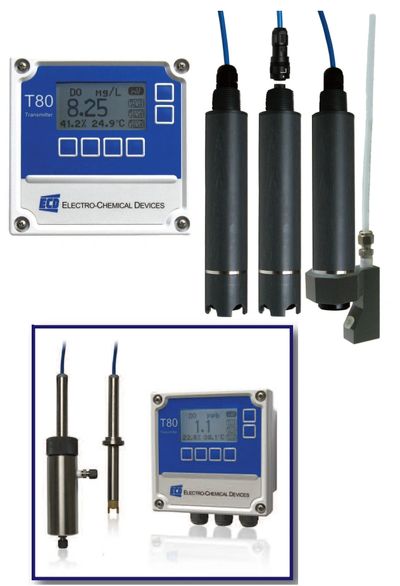

- Model T80 Universal Transmitter

The ECD Model T80 Universal Transmitter is a single or dual channel transmitter designed for the continuous measurement of pH, ORP, pION, Dissolved Oxygen, Turbidity, Conductivity or Resistivity in a general purpose industrial environment. The Model T80 transmitter digitally communicates with any ECD Model S80 Intelligent Sensor, automatically configuring the transmitter’s menus and display screens to the measured parameter. The same transmitter can be used for any of the measurements.

View PDF

- LQ800 Multi-Channel Controller

The Model LQ800 multi-Channel Controller provides a complete analytical measurement and process solution. The LQ800 platform is designed to operate with up to eight digital analytical and process sensors. The measurement parameters include well over 50 unique separate liquid measure sensors. These measurement include: pH, ORP, Conductivity, Resistivity, Dissolved Oxygen, Selective Ion, Turbidity, Flow, Level, and many others in varying configurations for a given application.

View PDF

Online Analyzers


CHLORINE ANALYZERS

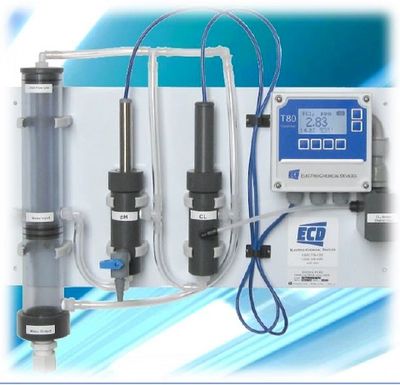

- Free Chlorine FC80

The FC80 Intelligent Free Chlorine Sensor stores calibration and has digital communication. It is used in  the chlorination of municipal drinking water, cooling towers, industrial disinfection of rinse waters, food processing, pasteurization lines, bleaching processes, and oxidation in chemical processing.


VIEW PRODUCT VIDEO

View PDF

- Free Chlorine FC80 High Range

The FC80 High Range (HR) is a panel mounted, ready to use Free Chlorine Analyzer. It is designed to monitor high range free chlorine for produce washwater and other high dose free chlorine applications. The analyzer’s measurement range is 0.05 – 200 ppm Cl2 where most applications commonly used concentrations of between 50 to 200 ppm Cl2.

View PDF

- TC80 Total Chlorine Analyzer

The Model TC80 is a panel mounted, ready to use Total Chlorine Analyzer. It is designed to monitor total chlorine in drinking water, rinse water, cooling water or other fresh water samples from 0.05 – 20 ppm Cl2 with the High Range sensor and 0.005 to 2.000 ppm with the Low Range sensor. The TC80 features a plug and play design that incorporates a flow control device, a pH sensor, a chlorine sensor and the T80 transmitter are conveniently mounted on a PVC panel.


VIEW PRODUCT VIDEO

View PDF

CHLORINE DIOXIDE ANALYZER

- CD80 Chlorine Dioxide Analyzer

The CD80  is a panel mounted, ready to use Chlorine Dioxide Analyzer. It is designed to monitor free chlorine in drinking water, rinse water, cooling water or other fresh water samples from 0.05 – 20 ppm chlorine as the standard range or 0.01 - 5.00 ppm with the low range sensor. The CD80 is compliant with EPA method 334.0 for measuring drinking water.

View PDF

DECHLORINATION ANALYZER

- DC-80 De-Chlorination Analyzer

The Model DC-80 is a panel mounted, ready to use De-Chlorination Analyzer. Since amperometric chlorine sensors are unstable when measuring near zero amounts of chlorine, the DC80 Analyzer uses the “zero shifted” strategy to make the measurement.

View PDF

SEAWATER DECHLORINATION ANALYZER

- DCA-23 Seawater Dechlorination Analyzer

The Model DCA-23 is a single purpose analyzer designed to monitor the chlorination and dechlorination of sea water from 0.00 - 2.00 ppm.

View PDF

DISINFECTION ANALYZERS

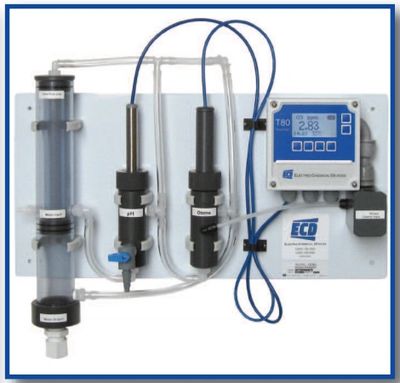

- Ozone Analyzer OZ80

The OZ80 is a panel mounted, ready to use Ozone (O3) analyzer. It is available in several ranges to suit its various applications, 0-2.00 ppm for disinfection processes and 0-20.00 ppm for oxidation and bleaching applications.

View PDF

- Hydrogen Peroxide Analyzer HP80

The HP80 is a panel mounted, ready to use Hydrogen Peroxide (H2O2) analyzer. It is available in several ranges to suit its various applications, 0-200 ppm for oxidation and disinfection processes and 0-20% for bleaching applications.

View PDF

COLORIMETRIC ANALYZERS

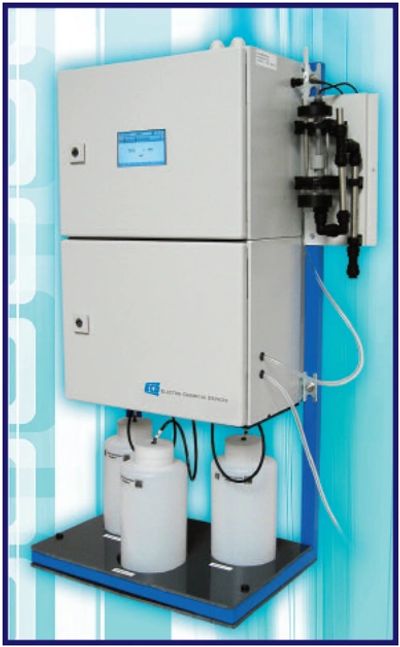

- CA -6

The CA-6 Series Analyzers are a family of on-line sequen3al

sampling analyzersthat use Colorimetric technology to perform

an analysis. The analyzers can be configured to perform most

colorimetric analysis that use up to four reagents.


Available for the following parameters:

Aluminum

Ammonia

Chloride

Chlorine

Chromium VI

Copper

Cyanide

Hardness

Iron

Manganese

Nickel

Nitrite

Phosphate

Total Phosphorus

Silica

Sulfate

Sulfide

Zinc

View PDF

TOC ANALYZER

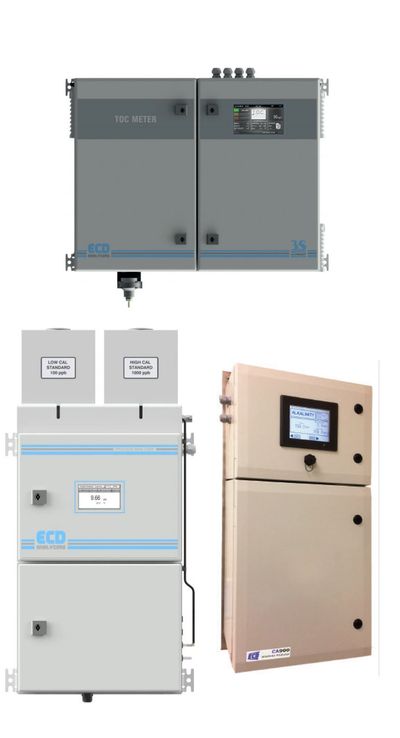

- TOC

Measuring TOC continuously online is the perfect solution for monitoring contamination and discharges. The TOC Analyzer measures total organic carbon in liquid samples using the method of UV persulfate oxidation with subsequent carbon dioxide detection by nondispersive infrared absorption (NDIR). The analyzer can measure TOC in liquid samples ranging from 0–5 mg/L to 20,000 mg/L. The method conforms to EPA, DIN, CE, ASTM, and NAMUR regulations as well as meeting the requirements of ISO and EN directives.

View PDF

SODIUM ANALYZER

- NA6

The NA6 Analyzer is a compact online analyzer for the automatic measurement of Sodium. The sodium measurement is based on the proven accuracy of the glass sodium electrode for the online potentiometry detection of low ppb traces of sodium. The sodium sensor develops a potential proportional to the log of the sodium concentration, after the pH of the sample is raised to 11 to eliminate pH and ammonium interferences. This is obtained using reagent vapor addition.

View PDF

ALKALINITY ANALYZERS

- CA900

The CA900 Series Analyzers are a family of on-line sequential sampling analyzers that use various automated analytical technologies to perform an analysis. When configured for alkalinity measurements, titration technology is used for the most cost effective, ease of use and low maintenance method.

View PDF

Optical Dissolved Oxygen Analyzers


TRITON DO82 SENSOR

- DO82

The Triton® DO82 Optical Dissolved Oxygen sensor uses fluorescence quenching to determine the oxygen concentration in water. The use of this optical method by the Triton® DO82 minimizes maintenance, increases reliability and improves the long term accuracy of the measurement. Combine this improved measurement technology with the rugged, easy to install design and the Triton® DO82 provides the best solution for long term measurements in aeration basins, aquaculture and all types of environmental water.

Find out more

TRITON pp DO90 SENSOR

- DO90

The Model DO90 Trace DO2 is designed for the continuous measurement of trace levels of dissolved oxygen in aqueous systems. The primary application of the Model DO90 trace dissolved oxygen sensor is in the monitoring of boiler feedwater. Oxygen should only be present in trace quantities, excessive concentrations of oxygen can result in corrosion damage to the components of the Steam Cycle.

View PDF

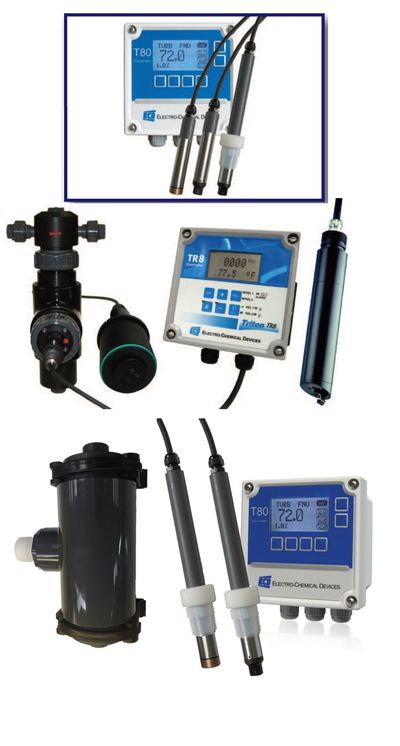

Turbidity Meters


- Triton® TR6 Turbidity Sensor

The Triton® TR6  sensor is designed for the continuous measurement of turbidity or suspended solids in various ranges from 0 -250 NTU to 0 - 4000 NTU. The sensor emits a beam of 850 nm near infrared light into the sample where it is scattered by particles suspended in the water. The amount of back scattered light returning to the sensor is measured and correlated to the turbidity or the amount of suspended solids in the sample.

Find out more

- Triton® TR8 Series Turbidity Sensors

The Triton TR8 is a nephelometric turbidity sensor designed for use in water and wastewater. Turbidity, the cloudiness or haziness of a water sample, is caused by particles suspended in the water, typically clay and silt. Since bacteria and viruses can be a3ached to these particles, turbidity has become a critical indicator of the overall water quality.

Find out more

- Triton® TR86 Series Turbidity Sensors

The Triton.TR86 sensor is designed for the continuous measurement of turbidity and suspended solids in various ranges. The sensor emits a beam of 850 nm near infrared light into the sample where it is scattered by particles suspended in the water. The amount of back scattered light returning to the sensor is measured and correlated to the amount of turbidity and suspended solids in the sample

Find out more

Nutrient Analyzers


- HYDRA® Nitrate Analyzer

The HYDRA-NO3 can be used to monitor the Total Nitrogen in the effluent. It requires sampling and the addition of a conditioning reagent to eliminate interferences from Chloride, Nitrite and bicarbonate.

Find out more

- HYDRA® Ammonium Analyzer

The HYDRA Ammonium Analyzer  measures the concentration of dissolved ammonium as nitrogen (NH4+ -N) in water. The sensor uses three electrodes to determine the NH4+ -N concentration, an Ammonium Ion Electrode, a Potassium Ion Electrode and a pH Electrode. It is designed for use in all kinds of water. Typical applications include monitoring environmental waters, lakes, streams and wells as well as wastewater treatment in aeration basins and effluent

Find out more

Water & Wastewater Samplers


Aqua Series Pressure/Vacuum Design

INDOOR/OUTDOOR STATIONARY SAMPLER

- AQUA-S

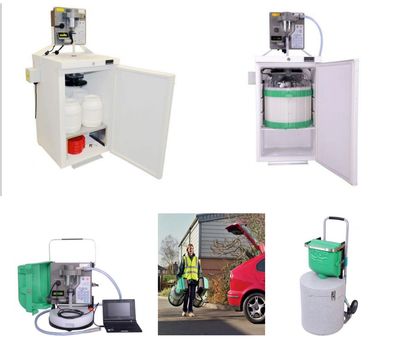

The ECD Analyzers range of stationary, refrigerated wastewater samplers consists of three models, the AQUA-S200, the AQUA-S320 and the rugged outdoor AQUA-S320H. At the heart of each is the well proven AQUA Sampling Module, a robust and reliable unit proven in thousands of applications worldwide and trusted by users as diverse as food manufacturers, water companies and the Environment Agencies. The air pump vacuum sampling system featured within the AQUA Module provides for an extremely accurate, reliable, representative and repeatable sample.

See PDF

PORTABLE SAMPLER

- AQUA-P

The ECD Analyzers Portable Wastewater Sampler range is made up of three models: The very small AQUA-COMPACT, the passively cooled AQUA-COOLBOX, and the versatile multi bottle AQUA-MULTIX, providing complete sampling flexibility. All can be powered by 110/220 VAC POWER, or an external 12VDC supply, or via an integral battery that can provide up to 350 samples on a full charge. The air pump vacuum sampling system featured within every AQUA Module provides for a reliable, representative and repeatable sample without the weaknesses that can be associated with alternative sampling techniques.

See PDF
